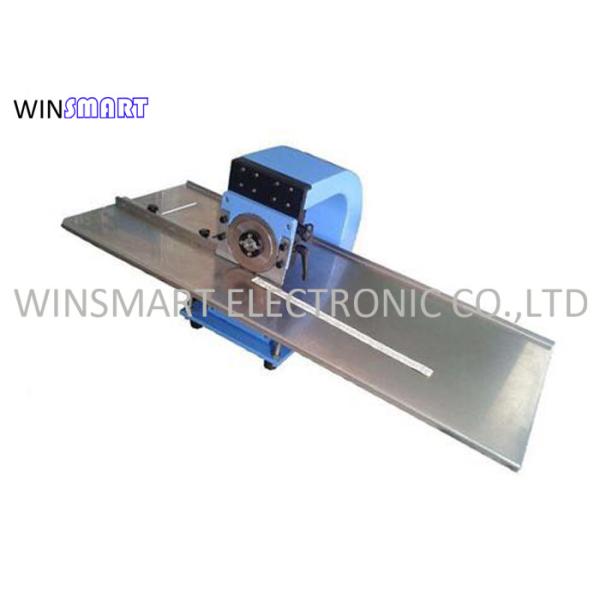

1200mm LED Strip PCB Depaneling Machine With 125mm Circular Blades

Name: 1200mm LED Strip PCB Depaneling Machine With 125mm Circular Blades
Brand: Winsmart
Price: 1 USD

Brand Name : Winsmart

Model Number : SMTD1

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : USD1-10000/set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 sets per month

Delivery Time : 2-5 days

Packaging Details : Plywood case

Blade Type : Circular Blade

Blade Material : High Speed Steel

Blade Diameter : 125mm

Cutting Speed : 0-400mm/s

Certificate : CE

Name : LED Strip PCB Depaneler

Contact Now

1200mm LED Strip PCB Depaneler Machine with 125mm Circular Blades

LED Strip PCB Depaneler Features:

1. Easy operation, high cutting speed.

2. The upper knife distance can be precisely adjusted to solve the V-cut problem, and the stress generated by the cutting plate is reduced to avoid tin cracking.

3. Upper and lower round knives can be adjusted precisely, suitable for led strip panels.

4. Blade is made of imported high speed steel which is durable.

5. Cutting speed is adjustable according to different application.

6. Blades are re-sharpened

LED Strip PCB Depaneler Specification:

Model	SMTD1
Machine Dimension	280x420x400mm
Platform Dimension	2400x500x400mm
Max Cutting Length	No limit
PCB Material	FR4, MCPCB, Copper Boards
Cutting Speed	0-400mm/s
PCB Thickness	0.8-3mm
Power	220/110V
Machine Weight	43kgs
Wooden Case Dimension	116x67x58cm
Gross Weight	76kgs

LED Strip PCB Depaneler Specifications:

	A : > 0.25mm B: 1.0mm(Max) Standard cutter : C2: ≧2mm C1: ≧0.3mm Θ: ≧20⁰
Max.Cutting length (mm)	Unlimited
Cutting thickness (mm)	0.8~2.0
Cutting Speed (mm/s)	0~400
Voltage (VAC)	230
Machine Weight (KG)	65

LED Strip PCB Depaneler Optional Spare Parts:

Customized blades

Blade re-sharpening service

LED Strip PCB Depaneler Functions:

Used for PCB depaneling single PCB boards from large panel.
